C Section Channel Roll Forming Machine with Gearbox Drive for Making Steel C Purlin

Place of Origin : China
Brand Name : TECHWELL
Certification : CE
Model Number : TW-C300
MOQ : 1 Set
Price : Contact Us
Packaging Details : Standard packing
Delivery Time : 55-65 working days
Payment Terms : 40% T/T in advance, 60% T/T before shipment
Supply Ability : 20 sets
Form Shape : C Section Profile
Material Thickness : 1.5-3.0
Material Type : Carbon Steel, Gavanized, Aluzinc
Transmission Type : Gearbox Drive
Shaft Diameter : 80mm
Roller Material : GCR15 with heat treatment
Contact Now


C Section Channel Roll Forming Machine with Gearbox Drive for Making Steel C Purlin


Components of C Section Channel Roll Forming Machine


Decoiler / Uncoiler1 Unit
Pinch Feeding & Leveling1 Unit
Main Roll Forming Machine1 Unit
Hydraulic Punching1 Unit
Cutting To Length1 Unit
Hydraulic Station1 Unit
PLC Computer Control Board1 Unit
Runout Table2 Units

Flow Chart of C Channel Purlin Roll Forming Machine


Decoiler ---> Fedding & Leveling ---> Roll Forming ---> Punching ---> Cut-to-length ---> Run out table


C Channel Purlin Profile Drawing



Main Specifications of C Channel Purlin Roll Forming Machine


Coil Material

Thickness1.5-3.0mm
Coil widthCustom-made
Yield Strength250-350Mpa
MaterialGI. Carbon Steel
Decoiler / UncoilerCoil WidthMax. 600mm
I.D508-610mm
O.DMax. 1500mm
Pinch Feeding & LevelingFeeding roller4 Rollers
Leveling roller7 Rollers ( upper 3 rollers, bottom 4 rollers )
Roll Forming MachineForming stations14 Stations ( Depend on Profiles )
Roller materialGCr15 steel, HRC58-62
Diameter of shaft80mm
Shaft materialHigh grade 45# steel
Drive typeGimbal Gearbox Drive
Forming speed0-15m/min
Main power18.5KW
PunchingPunching typeHydraulic Punching
Punching dieCr12Mov, quenched, HRC58-62
CuttingCutting typeHydraulic cutting
Cutting bladeCr12Mov, quenched
Cutting Tolerance10m+/-1.5mm
EncoderOMRON Brand
Electrical controlPLCPANASONIC Brand or Custom-made
InverterYASKAWA Brand or Custom-made
Touch screenMCGS Brand or Custom-made
Operation typeTouch screen & Button
Hydraulic StationHydraulic stationFamous Chinese brand
Hydraulic Power7.5KW
Runout TableTable typeSimple nonpower type
FunctionTo support the finished panels

TECHWELL Advantage


  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

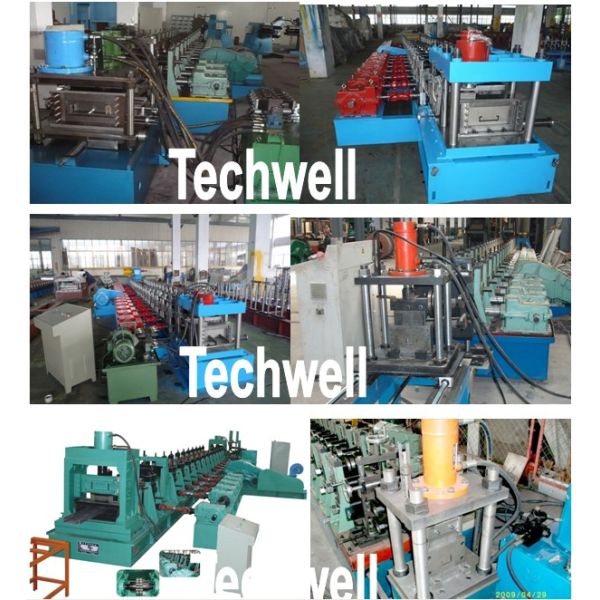

C Channel Section Roll Forming Machine Pictures
